When the iopool integration triggers internal actions or scheduled events (such as filtration slot start/end, boost, or mode changes), it publishes events to the [Home Assistant Event Bus](https://my.home-assistant.io/redirect/developer_events/).
All events use the event type `IOPOOL_EVENT`.

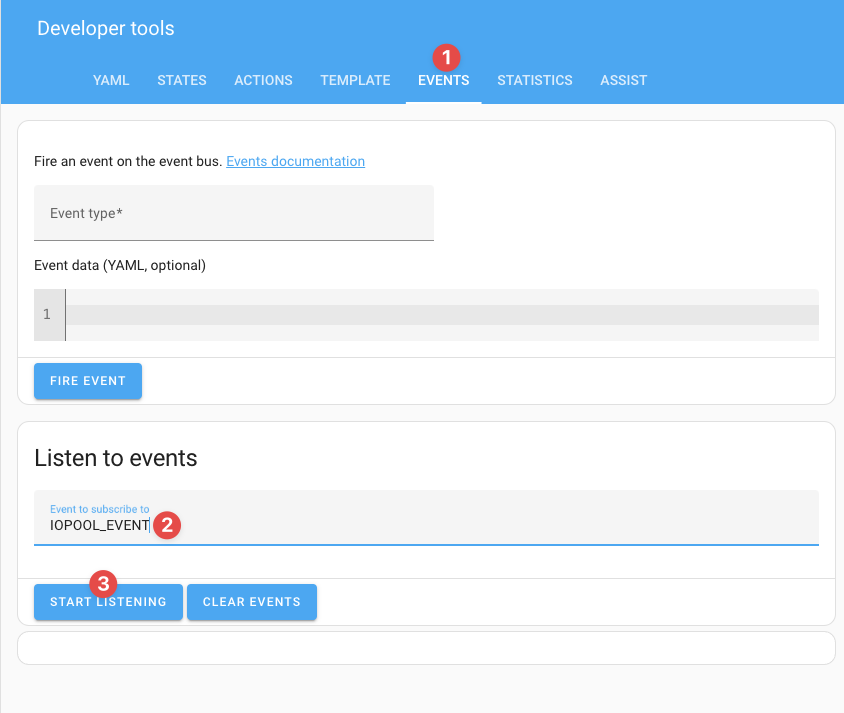

<Image src="/images/devtool-events.png" alt="HA DevTool Events" />

## Event: `IOPOOL_EVENT`

All iopool events are published under the event type `IOPOOL_EVENT`.
You can use these events in Home Assistant automations to trigger notifications, scripts, or other actions based on pool status changes, filtration cycles, or recommendations.

### Event Structure

Each event has the following structure:

```yaml
event_type: IOPOOL_EVENT
data:
  type: <EVENT_TYPE>
  pool_id: <POOL_ID>
  pool_title: <POOL_NAME>
  data: <EVENT_DATA>
origin: LOCAL
time_fired: <timestamp>
context:
  id: <event_id>
  parent_id: null
  user_id: null
```

- `type`: The event type (see list below)
- `pool_id`: The unique ID of the pool concerned
- `pool_title`: The name of the pool
- `data`: Event-specific data (see below)

---

## List of Published Events

The following events are published by the integration:

| Event Type           | Description                                              |
|----------------------|---------------------------------------------------------|
| `BOOST_START`        | A boost filtration period has started                   |
| `BOOST_END`          | A boost filtration period has ended                     |
| `BOOST_CANCELED`     | A boost filtration period was canceled before its end   |
| `SLOT1_START`        | Summer slot #1 filtration started                       |
| `SLOT1_END`          | Summer slot #1 filtration ended                         |
| `SLOT2_START`        | Summer slot #2 filtration started                       |
| `SLOT2_END`          | Summer slot #2 filtration ended                         |
| `WINTER_START`       | Winter filtration started                               |
| `WINTER_END`         | Winter filtration ended                                 |

---

## Example Events

<Card title="Example: BOOST_START" icon="bolt">
```yaml
event_type: IOPOOL_EVENT
data:
  type: BOOST_START
  pool_id: 123456
  pool_title: "My Pool"
  data:
    start_time: "2024-06-01T10:00:00+02:00"
    end_time: "2024-06-01T14:00:00+02:00"
    duration_minutes: 240
origin: LOCAL
time_fired: "2024-06-01T10:00:01.000000+02:00"
context:
  id: 01JZ1234567890ABCDE
  parent_id: null
  user_id: null
```
</Card>

<Card title="Example: SLOT1_START" icon="play">
```yaml
event_type: IOPOOL_EVENT
data:
  type: SLOT1_START
  pool_id: 123456
  pool_title: "My Pool"
  data:
    start_time: "2024-06-01T06:00:00+02:00"
    end_time: "2024-06-01T08:00:00+02:00"
    duration_minutes: 120
origin: LOCAL
time_fired: "2024-06-01T06:00:01.000000+02:00"
context:
  id: 01JZ1234567890ABCDE
  parent_id: null
  user_id: null
```
</Card>

<Card title="Example: SLOT2_END" icon="stop">
```yaml
event_type: IOPOOL_EVENT
data:
  type: SLOT2_END
  pool_id: 123456
  pool_title: "My Pool"
  data:
    start_time: "2024-06-01T18:00:00+02:00"
    end_time: "2024-06-01T20:00:00+02:00"
    duration_minutes: 120
    boost_in_progress: "None"
    remaining_boost_duration_minutes: 0
    day_filtration_objective_minutes: 360
    day_filtration_elapsed_minutes: 360
    day_filtration_elapsed_percent: 100
origin: LOCAL
time_fired: "2024-06-01T20:00:01.000000+02:00"
context:
  id: 01JZ1234567890ABCDE
  parent_id: null
  user_id: null
```
</Card>

<Card title="Example: WINTER_END" icon="snowflake">
```yaml
event_type: IOPOOL_EVENT
data:
  type: WINTER_END
  pool_id: 123456
  pool_title: "My Pool"
  data:
    start_time: "2024-12-01T03:00:00+01:00"
    end_time: "2024-12-01T05:00:00+01:00"
    duration_minutes: 120
    boost_in_progress: "None"
    remaining_boost_duration_minutes: 0
    day_filtration_objective_minutes: 120
    day_filtration_elapsed_minutes: 120
    day_filtration_elapsed_percent: 100
origin: LOCAL
time_fired: "2024-12-01T05:00:01.000000+01:00"
context:
  id: 01JZ1234567890ABCDE
  parent_id: null
  user_id: null
```
</Card>

---

## Event Data Details

Depending on the event type, the `data` field contains:

- **For BOOST events (`BOOST_START`, `BOOST_END`, `BOOST_CANCELED`):**
  - `start_time`: ISO8601 datetime when boost started (local time)
  - `end_time`: ISO8601 datetime when boost ended or was canceled (local time)
  - `duration_minutes`: Duration of the boost in minutes

- **For SLOT and WINTER events:**
  - `start_time`: ISO8601 datetime when filtration started
  - `end_time`: ISO8601 datetime when filtration ended
  - `duration_minutes`: Duration of the slot/winter filtration in minutes
  - `boost_in_progress`: Current boost state (`None`, `1H`, `2H`, `4H`, etc.)
  - `remaining_boost_duration_minutes`: Minutes left in boost (if any)
  - `day_filtration_objective_minutes`: Target filtration duration for the day
  - `day_filtration_elapsed_minutes`: Elapsed filtration time for the day
  - `day_filtration_elapsed_percent`: Percentage of daily objective reached

---

## Usage in Automations

You can use these events in Home Assistant automations to trigger notifications, scripts, or other actions.
For example, to notify when a boost ends:

```yaml
automation:
  - alias: "Notify when pool boost ends"
    trigger:
      - platform: event
        event_type: IOPOOL_EVENT
        event_data:
          type: BOOST_END
    action:
      - service: notify.mobile_app_your_phone
        data:
          message: "The boost filtration for your pool has ended."
```

<Info>
All event times are in your Home Assistant's local timezone.
</Info>
