Architecture

The ASL Methods Section Generator follows a modern, modular architecture designed for scalability, maintainability, and extensibility. The system is composed of three main components that work together to provide a comprehensive ASL data processing and report generation solution.

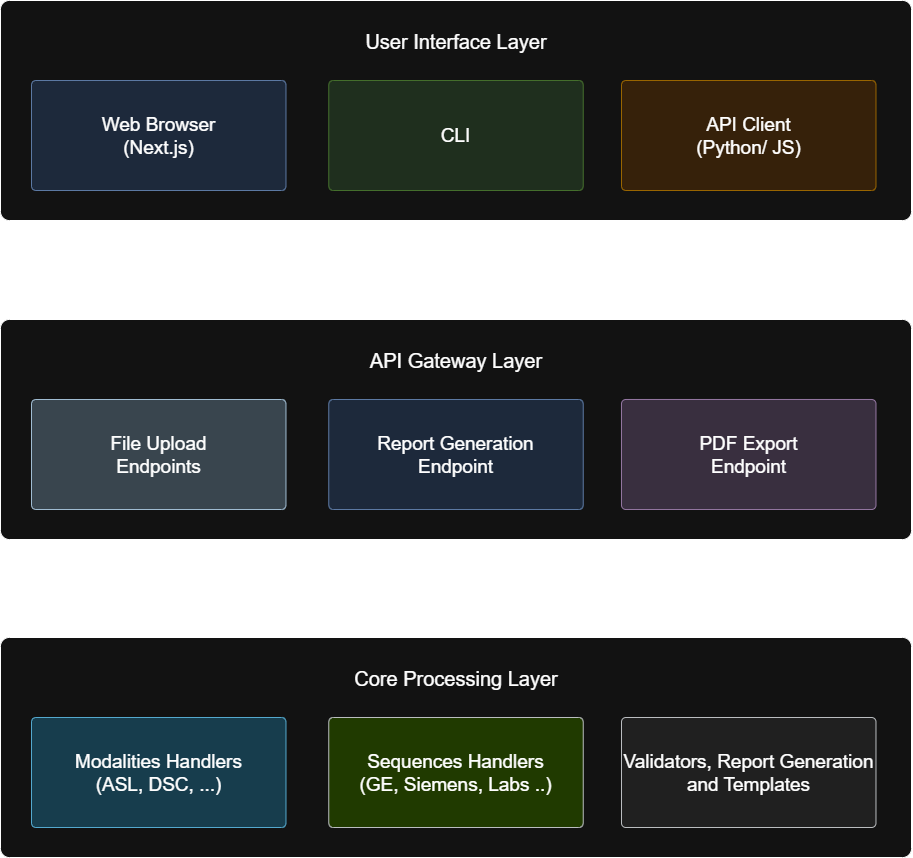

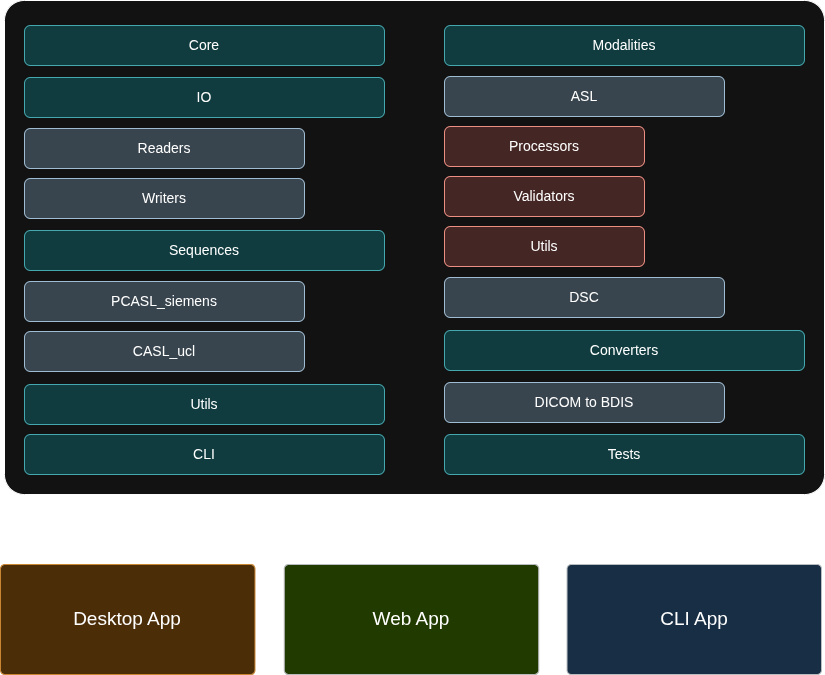

High-Level Architecture

The system architecture consists of three primary layers:

🔧 Component Details

1. Frontend Application (Next.js)

Location: apps/frontend/

Technology Stack:

• Framework: Next.js 15.3.3 with React 19
• Styling: Tailwind CSS with shadcn/ui components
• State Management: React Context API
• HTTP Client: Axios for API communication
• Build Tool: Turbopack for development

Key Components:

• File Upload Interface: Folder selection
• Report Display: Interactive report viewing with error/warning highlighting
• Navigation: Sidebar navigation with theme support
• PDF Export: Client-side PDF generation capabilities

Architecture Patterns:

• Component-based architecture with reusable UI components
• Context-based state management for global application state
• Service layer for API communication
• Utility functions for file processing and validation

2. Backend API (FastAPI)

Location: apps/backend/

Technology Stack:

• Framework: FastAPI with Python 3.11
• ASGI Server: Uvicorn with auto-reload
• File Processing: Python multipart for file uploads
• PDF Generation: WeasyPrint for HTML to PDF conversion

API Endpoints:

POST /api/report/process                # Process uploaded files
POST /api/report/missing-parameters     # Handle missing parameters
POST /api/report/report-pdf             # Generate PDF reports
GET  /                                  # API information

Key Features:

• File Upload Handling: Multipart form data processing
• Error Handling: Comprehensive error responses with HTTP status codes
• File Storage: Temporary file storage for processing
• PDF Generation: Server-side PDF report generation

3. Core Package (pyaslreport)

Location: package/src/pyaslreport/

Technology Stack:

• Core Dependencies: NiBabel, PyDICOM
• DICOM Processing: dicom2nifti for format conversion
• Validation: Custom validation schemas and rules
• Report Generation: Template-based report creation

Architecture Components:

Modality System

This handles the report generation for modalities (ASL, DSC, ..) Whenever you are implementing a new modality you have to follow the same stucture.

modalities/
├── asl/                   # ASL-specific processing
│   ├── processor.py       # Main ASL processor
│   ├── validator.py       # ASL validation logic
│   ├── report_generator.py # ASL report templates
│   └── validators/        # Specific validators
├── testdsc/               # DSC modality (in development)
└── registry.py            # Modality registration system

Sequence Management

This Handles the extraction of BDIS metadata (e.g. asl.json) from DICOM for vendors and organization implementation of modalities

sequences/
├── factory.py             # Sequence factory pattern
├── ge/                    # GE vendor sequences
│   ├── asl/               # GE ASL sequences
│   └── dsc/               # GE DSC sequences
├── siemens/               # Siemens vendor sequences
└── philips/               # Philips vendor sequences

Input/Output System

io/
├── readers/               # File reading utilities
│   ├── file_reader.py     # Generic file reader
│   ├── nifti_reader.py    # NIfTI file processing
│   └── yaml_reader.py     # YAML configuration reading
└── writers/               # Output generation
    ├── json_writer.py     # JSON report output
    ├── report_writer.py   # Formatted report generation
    └── tsv_writer.py      # TSV file output

Data Flow

1. File Upload Process

User Upload → Frontend Validation → Backend API → File Storage → Core Processing

2. Report Generation Process

Core Processing → Validation → Report Generation → API Response →  Display

3. PDF Export Process

Report Data → HTML Template → WeasyPrint → PDF File → Download

Scalability Features

1. Horizontal Scaling

• Stateless API design
• Containerized deployment
• Load balancer ready

2. Modular Architecture

• Independent component development
• Plugin-based modality system
• Extensible validation framework

3. Performance Optimization

• Async file processing
• Efficient memory usage
• Caching strategies (planned)

Configuration Management

1. Environment Variables

# Backend Configuration
NEXT_PUBLIC_API_BASE_URL=http://localhost:8000/api

Deployment Architecture

Development Workflow

1. Local Development: Docker Compose with volume mounting
2. Testing: Automated tests for each component
3. Staging: Containerized deployment
4. Production: Orchestrated container deployment

Future Architecture Considerations

1. Database Integration

• User management system
• Report history storage
• Configuration persistence

2. Advanced Features

• Share Reports
• Version control for reports
• Integration with research platforms
