Events

When the iopool integration triggers internal actions or scheduled events (such as filtration slot start/end, boost, or mode changes), it publishes events to the Home Assistant Event Bus.
All events use the event type IOPOOL_EVENT.

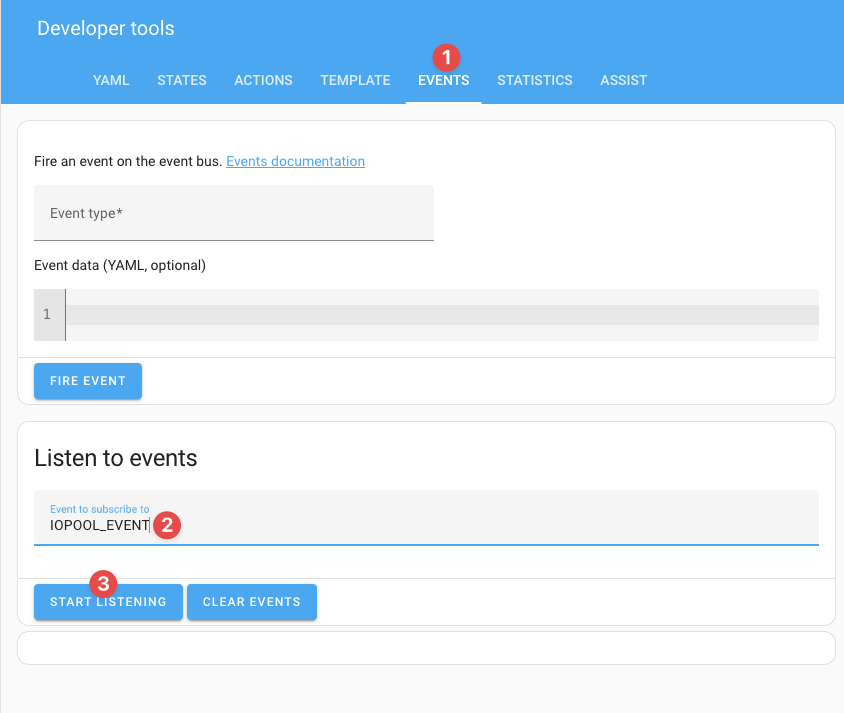

HA DevTool Events

Event: IOPOOL_EVENT

All iopool events are published under the event type IOPOOL_EVENT.
You can use these events in Home Assistant automations to trigger notifications, scripts, or other actions based on pool status changes, filtration cycles, or recommendations.

Event Structure

Each event has the following structure:

event_type: IOPOOL_EVENT
data:
  type: <EVENT_TYPE>
  pool_id: <POOL_ID>
  pool_title: <POOL_NAME>
  data: <EVENT_DATA>
origin: LOCAL
time_fired: <timestamp>
context:
  id: <event_id>
  parent_id: null
  user_id: null
  • type: The event type (see list below)
  • pool_id: The unique ID of the pool concerned
  • pool_title: The name of the pool
  • data: Event-specific data (see below)

List of Published Events

The following events are published by the integration:

Event TypeDescription
BOOST_STARTA boost filtration period has started
BOOST_ENDA boost filtration period has ended
BOOST_CANCELEDA boost filtration period was canceled before its end
SLOT1_STARTSummer slot #1 filtration started
SLOT1_ENDSummer slot #1 filtration ended
SLOT2_STARTSummer slot #2 filtration started
SLOT2_ENDSummer slot #2 filtration ended
WINTER_STARTWinter filtration started
WINTER_ENDWinter filtration ended

Example Events

Example: BOOST_START

event_type: IOPOOL_EVENT
data:
  type: BOOST_START
  pool_id: 123456
  pool_title: "My Pool"
  data:
    start_time: "2024-06-01T10:00:00+02:00"
    end_time: "2024-06-01T14:00:00+02:00"
    duration_minutes: 240
origin: LOCAL
time_fired: "2024-06-01T10:00:01.000000+02:00"
context:
  id: 01JZ1234567890ABCDE
  parent_id: null
  user_id: null

Example: SLOT1_START

event_type: IOPOOL_EVENT
data:
  type: SLOT1_START
  pool_id: 123456
  pool_title: "My Pool"
  data:
    start_time: "2024-06-01T06:00:00+02:00"
    end_time: "2024-06-01T08:00:00+02:00"
    duration_minutes: 120
origin: LOCAL
time_fired: "2024-06-01T06:00:01.000000+02:00"
context:
  id: 01JZ1234567890ABCDE
  parent_id: null
  user_id: null

Example: SLOT2_END

event_type: IOPOOL_EVENT
data:
  type: SLOT2_END
  pool_id: 123456
  pool_title: "My Pool"
  data:
    start_time: "2024-06-01T18:00:00+02:00"
    end_time: "2024-06-01T20:00:00+02:00"
    duration_minutes: 120
    boost_in_progress: "None"
    remaining_boost_duration_minutes: 0
    day_filtration_objective_minutes: 360
    day_filtration_elapsed_minutes: 360
    day_filtration_elapsed_percent: 100
origin: LOCAL
time_fired: "2024-06-01T20:00:01.000000+02:00"
context:
  id: 01JZ1234567890ABCDE
  parent_id: null
  user_id: null

Example: WINTER_END

event_type: IOPOOL_EVENT
data:
  type: WINTER_END
  pool_id: 123456
  pool_title: "My Pool"
  data:
    start_time: "2024-12-01T03:00:00+01:00"
    end_time: "2024-12-01T05:00:00+01:00"
    duration_minutes: 120
    boost_in_progress: "None"
    remaining_boost_duration_minutes: 0
    day_filtration_objective_minutes: 120
    day_filtration_elapsed_minutes: 120
    day_filtration_elapsed_percent: 100
origin: LOCAL
time_fired: "2024-12-01T05:00:01.000000+01:00"
context:
  id: 01JZ1234567890ABCDE
  parent_id: null
  user_id: null

Event Data Details

Depending on the event type, the data field contains:

  • For BOOST events (BOOST_START, BOOST_END, BOOST_CANCELED):

    • start_time: ISO8601 datetime when boost started (local time)
    • end_time: ISO8601 datetime when boost ended or was canceled (local time)
    • duration_minutes: Duration of the boost in minutes
  • For SLOT and WINTER events:

    • start_time: ISO8601 datetime when filtration started
    • end_time: ISO8601 datetime when filtration ended
    • duration_minutes: Duration of the slot/winter filtration in minutes
    • boost_in_progress: Current boost state (None, 1H, 4H, etc.)
    • remaining_boost_duration_minutes: Minutes left in boost (if any)
    • day_filtration_objective_minutes: Target filtration duration for the day
    • day_filtration_elapsed_minutes: Elapsed filtration time for the day
    • day_filtration_elapsed_percent: Percentage of daily objective reached

Usage in Automations

You can use these events in Home Assistant automations to trigger notifications, scripts, or other actions.
For example, to notify when a boost ends:

automation:
  - alias: "Notify when pool boost ends"
    trigger:
      - platform: event
        event_type: IOPOOL_EVENT
        event_data:
          type: BOOST_END
    action:
      - service: notify.mobile_app_your_phone
        data:
          message: "The boost filtration for your pool has ended."

All event times are in your Home Assistant's local timezone.
