## New Method - Bundled

<Info>
  No separate installation is needed. The card is bundled (since `1.2.5-beta.1`) with the hass-iopool integration and becomes available automatically once the integration is installed.
</Info>

The iopool Card is the main Lovelace card for the [hass-iopool](https://docs.page/mguyard/hass-iopool) integration. It brings together the most useful pool information from your iopool EcO sensor in a single dashboard view.
It can show temperature, pH, and ORP gauges, pump controls, filtration mode selection, boost controls, daily filtration progress, and a temperature history chart.

<Card title="What you get" icon="pool">
- Live gauges for temperature, pH, and ORP
- Pump control when a pump switch is configured
- Filtration mode selector and boost selector
- Daily filtration status and recommendation
- Temperature history chart with period selector
</Card>

All details about the iopool card are available [here](https://docs.page/mguyard/hass-iopool-card)

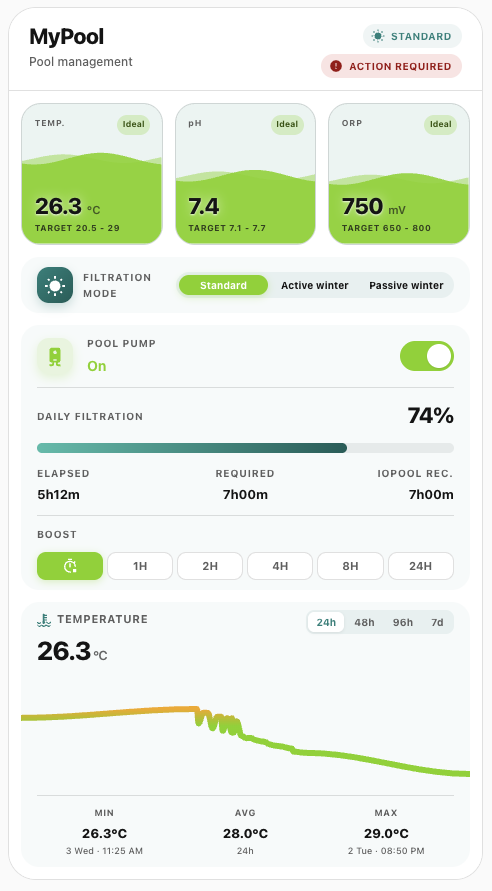

<Image src="https://raw.githubusercontent.com/mguyard/hass-iopool-card/main/docs/assets/full-card.png" alt="iopool Card" />

<Info>
  There is no separate HACS repository for the card. Install the hass-iopool integration through
  HACS, and the card is exposed automatically.
</Info>

## Old Method

This page explains how to add a custom dashboard card for your iopool integration in Home Assistant. You can personalize the card by entering your pool name below. The YAML code will update automatically.

> **Tip:** Replace `mypool` with the actual name of your pool entity (e.g., `home`, `garden`, etc.).

<Steps>
    <Step title="Install required custom cards with HACS">
        - [Vertical Stack In Card](https://github.com/ofekashery/vertical-stack-in-card)
        - [Mushroom](https://github.com/piitaya/lovelace-mushroom)
        - [button-card](https://github.com/custom-cards/button-card)
        - [mini-graph-card](https://github.com/kalkih/mini-graph-card)
        - [Pool Monitor Card](https://github.com/wilsto/pool-monitor-card)
        - [Timer Bar Card](https://github.com/rianadon/timer-bar-card)

        <Info>All these cards are available in HACS. Install them before proceeding.</Info>
    </Step>
  <Step title="Enter your pool and pump entity names">
  Enter the name of your pool as defined in iopool (this is the dynamic part of your entity IDs, e.g. `sensor.iopool_XXX_temperature`).

  Also, enter the entity ID of your pool pump (e.g. `switch.pool_pump`).
  These values will be used to personalize the YAML code below.
    <CustomPoolNameInput />
    <CustomPumpInput />
  </Step>
    <Step title="Copy and paste the YAML code below into your Home Assistant dashboard">
        Create a new `Manual` card in your dashboard and paste the YAML content below.

        <Warning>The YAML code shown below is a partial preview. To get the complete YAML, please use the Copy button in the top right corner.</Warning>

        <CustomCodeBlock inputId="pool-name-input" />
    </Step>
</Steps>

<Warning>
There is currently an [open issue](https://github.com/wilsto/pool-monitor-card/issues/68) with the [Pool Monitor Card](https://github.com/wilsto/pool-monitor-card) that causes values to display with excessive decimal places.
A new feature addressing this was added in [commit](https://github.com/wilsto/pool-monitor-card/commit/2043581f48138560ca82eac57835dcea084924a6), but it has not yet been released in a production version.
The iopool integration is already prepared for this update and exposes `display_precision` for each sensor where `suggested_display_precision` is set.
</Warning>

<Image src="/images/dashboard-card.png" alt="Dashboard Card" />


<!-- Custom component for pool name input and dynamic YAML code block -->

export const CustomPoolNameInput = props => {
  let inputRef = null;
  return (
    <div style={{marginBottom: '1em'}}>
      <label htmlFor="pool-name-input" style={{fontWeight:600, marginRight:8}}>Pool name:</label>
      <input
        id="pool-name-input"
        type="text"
        defaultValue="mypool"
        ref={el => (inputRef = el)}
        style={{padding:'4px 8px', borderRadius:4, border:'1px solid #ccc', minWidth:120}}
        placeholder="e.g. mypool"
      />
    </div>
  );
}

export const CustomPumpInput = props => {
  let inputRef = null;
  return (
    <div style={{marginBottom: '1.5em'}}>
      <label htmlFor="pump-entity-input" style={{fontWeight:600, marginRight:8}}>Pump entity:</label>
      <input
        id="pump-entity-input"
        type="text"
        defaultValue="switch.pool_pump"
        ref={el => (inputRef = el)}
        style={{padding:'4px 8px', borderRadius:4, border:'1px solid #ccc', minWidth:180}}
        placeholder="e.g. switch.pool_pump"
      />
    </div>
  );
}

export const CustomCodeBlock = ({ inputId }) => {
  let codeRef = null;
  let buttonRef = null;
  let template = '';
  let templateLoaded = false;
  let loading = false;
  let error = null;

  // Fetch YAML template from GitHub raw URL (only once per page load)
  function fetchTemplate(callback) {
    if (window._iopool_card_template) {
      template = window._iopool_card_template;
      templateLoaded = true;
      callback();
      return;
    }
    if (loading) return;
    loading = true;
    fetch('https://raw.githubusercontent.com/mguyard/hass-iopool/refs/heads/beta/docs/resources/card-template.yaml')
      .then((res) => {
        if (!res.ok) throw new Error('Failed to load YAML template');
        return res.text();
      })
      .then((text) => {
        window._iopool_card_template = text;
        template = text;
        templateLoaded = true;
        loading = false;
        callback();
      })
      .catch((err) => {
        error = err.message;
        loading = false;
        callback();
      });
  }

  function getYaml() {
    const poolInput = document.getElementById('pool-name-input');
    const pumpInput = document.getElementById('pump-entity-input');
    const poolName = poolInput?.value || 'mypool';
    const pumpEntity = pumpInput?.value || 'switch.pool_pump';
    return template.replaceAll('{POOL_NAME}', poolName).replaceAll('{POOL_PUMPNAME}', pumpEntity);
  }

  function getPreviewYamlParts() {
    const full = getYaml();
    const lines = full.split('\n');
    if (lines.length > 50) {
      return {
        preview: lines.slice(0, 50).join('\n'),
        truncated: true
      };
    }
    return { preview: full, truncated: false };
  }

  function updateYaml() {
    if (!templateLoaded) {
      if (codeRef) codeRef.innerHTML = 'Loading YAML template...';
      fetchTemplate(() => {
        if (error) {
          if (codeRef) codeRef.innerHTML = 'Error: ' + error;
        } else {
          const { preview, truncated } = getPreviewYamlParts();
          if (codeRef) codeRef.innerHTML = truncated
            ? preview + '<br/><span style="color: orange; font-weight: bold;">... (truncated, use the Copy button for full YAML)</span>'
            : preview;
        }
      });
      return;
    }
    const { preview, truncated } = getPreviewYamlParts();
    if (codeRef) codeRef.innerHTML = truncated
      ? preview + '<br/><span style="color: orange; font-weight: bold;">... (truncated, use the Copy button for full YAML)</span>'
      : preview;
  }

  function copyToClipboard() {
    if (!templateLoaded) return;
    navigator.clipboard.writeText(getYaml());
    if (buttonRef) {
      buttonRef.textContent = "Copied!";
      setTimeout(() => (buttonRef.textContent = "Copy"), 1200);
    }
  }

  if (typeof window !== 'undefined') {
    setTimeout(() => {
      const poolInput = document.getElementById('pool-name-input');
      const pumpInput = document.getElementById('pump-entity-input');
      if (poolInput) poolInput.addEventListener('input', updateYaml);
      if (pumpInput) pumpInput.addEventListener('input', updateYaml);
      updateYaml();
    }, 0);
  }

  return (
    <div style={{
      position: 'relative',
      background: '#23272e',
      borderRadius: '8px',
      padding: '1.2em 1em 1em 1em',
      margin: '1em 0',
      fontFamily: 'monospace',
      fontSize: '15px',
      color: '#e6e6e6',
      overflowX: 'auto'
    }}>
      <button
        ref={el => (buttonRef = el)}
        onClick={copyToClipboard}
        style={{
          position: 'absolute',
          top: '10px',
          right: '16px',
          background: '#23272e',
          color: '#bdbdbd',
          border: '1px solid #444',
          borderRadius: '6px',
          padding: '2px 12px',
          fontSize: '13px',
          cursor: 'pointer'
        }}
      >Copy</button>
      <pre style={{margin: 0, background: 'none', color: 'inherit'}}>
        <code ref={el => (codeRef = el)} />
      </pre>
    </div>
  );
};
