Configurable Widgets

Sometimes you want to give your users the ability to configure their HomeScreenWidgets to their liking. For example a weather widget that can show the weather for different locations or a todo list that can show different lists.

iOS

On iOS there are two ways to make your App Configurable. The new and recommended way by Apple is to use WidgetConfigurationIntent you can also provide backwards compatibility using SiriKit Intents

WidgetConfigurationIntent

Create Widget Extension
If you create a new Widget add an extension by going
File

New

Target

Widget Extension
This time checking the box for
Include Configuration App Intent
The generated Widget code includes the following classes:
- AppIntentTimelineProvider - Provides a Timeline of entries at which the System will update the Widget automatically using an AppIntent for configuration - TimelineEntry - Represents the Data Object used to build the Widget. The date field is necessary and defines the point in time at which the Timeline would update - View - The Widget itself, which is built with SwiftUI - Widget - Configuration: Make note of the kind you set in the Configuration as this is what's needed to update the Widget from Flutter.
In a separate file there is a WidgetConfigurationIntent defined that will determine the configuration options of the Widget in AppIntent.swift.

Adjusting the Configuration Intent

You can add fields that appear in the configuration by changing the generated ConfigurationAppIntent class.

swift

@Parameter(title: "Name", default: "World")
var name: String

You can access the fields of the configuration when building the Widget UI

swift

struct ConfigurableWidgetEntryView : View {
    var entry: Provider.Entry

    var body: some View {
        VStack {
            Text("Hello")
            Text(entry.configuration.name)
        }
    }
}

    </div>

Getting Data from Flutter to the Configuration

App Groups

In order for sending Data from your Flutter App to the Widget we need to use

App Groups

Information

App Groups require a paid Apple Developer Account

Create a new App Group

Visit the Apple Developer Portal and create a new App Group.

Enable App Groups in XCode

Add the App Group capability to

both the App Target (Runner) and your Widget Extension

in XCode.

Register App Group in Flutter

In your Flutter code register the App Group with home_widget

dart

import 'package:home_widget/home_widget.dart';
void main() {
    WidgetFlutterBinding.ensureInitialized();
    HomeWidget.setAppGroupId('group.YOUR_APP_GROUP_ID');
    runApp(MyApp());
}

Send Data

You can store data from Flutter for the Widget using HomeWidget.saveWidgetData to use it as options in the configuration panel.

dart

final punctuations = [
    '!',
    '!!!',
    '.',
    '?',
    // Wave Emoji
    '\u{1F44B}',
];
await HomeWidget.saveWidgetData(
    'punctuations',
    jsonEncode(punctuations),
);

Use Values from Flutter as Options in Customize Panel

In XCode and Swift add an AppEntity and matching EntityQuery

swift


@Parameter(title: "Punctuation")
var punctuation: PunctuationEntity
}

// Make Entity Codable so home_widget
// That way home_widget can best extract the values from a configuration
struct PunctuationEntity: AppEntity, Codable {

let id: String

static var typeDisplayRepresentation: TypeDisplayRepresentation = "Punctuation"
static var defaultQuery = PunctuationQuery()

var displayRepresentation: DisplayRepresentation {
    DisplayRepresentation(title: "\(id)")
}
}

struct PunctuationQuery: EntityQuery {

func punctuations() -> [PunctuationEntity] {
    let userDefaults = UserDefaults(suiteName: "YOUR_APP_GROUP")

    do {
    let jsonPunctuations = (userDefaults?.string(forKey: "punctuations") ?? "[\"!\"]").data(
        using: .utf8)!
    let stringArray = try JSONDecoder().decode([String].self, from: jsonPunctuations)
    return stringArray.map { punctuation in
        PunctuationEntity(id: punctuation)

    }
    } catch {
    return [PunctuationEntity(id: "!")]
    }

}

func entities(for identifiers: [PunctuationEntity.ID]) async throws -> [PunctuationEntity] {
    let results = punctuations().filter { identifiers.contains($0.id) }
    return results
}

func suggestedEntities() async throws -> [PunctuationEntity] {
    return punctuations()
}

func defaultResult() async -> PunctuationEntity? {
    try? await suggestedEntities().first
}

}

Now you can access this new parameter in your Widget Code

swift

struct ConfigurableWidgetEntryView: View {
var entry: Provider.Entry

var body: some View {
    VStack {
    Text("Hello")
    Text(entry.configuration.name)
    Text(entry.configuration.punctuation.id)
    }
}
}

Seeing Configuration in Flutter

You need to let home_widget know about the relation of the Intent and the kind (what you need for updating the widget).

Add `Runner` as a Target of the Widget

Open the Intent Swift File and in the Details Pane enable the Target Membership for the Runner Target

Register Configuration in AppDelegate

In your AppDelegate.swift register the Configuration Intent together with the kind of your Widget

swift

import Flutter
import UIKit
import home_widget

@main
@objc class AppDelegate: FlutterAppDelegate {
override func application(
    _ application: UIApplication,
    didFinishLaunchingWithOptions launchOptions: [UIApplication.LaunchOptionsKey: Any]?
) -> Bool {
    GeneratedPluginRegistrant.register(with: self)
    if #available(iOS 17.0, *) {
    HomeWidgetPlugin.setConfigurationLookup(to: [
        "ConfigurableWidget": ConfigurationAppIntent.self
    ])
    }
    return super.application(application, didFinishLaunchingWithOptions: launchOptions)
}
}

To get the configuration a user made to a Widget you can use HomeWidget.getInstalledWidgets().

dart

final configuration = await HomeWidget.getInstalledWidgets();

this will give you a list of HomeWidgetInfo in there there is a Map<String, dynamic>? configuration.

Warning

On iOS Simulators HomeWidget.getInstalledWidgets() will always return an empty list.

To fully test this you should test on a real iOS Device

For our Greeting Example the Configuration would be:

json

{
    "name": "Documentation",
    "punctuation": {
        "id": "!!!"
    }
}

SiriKit Intents

Before iOS 17 SiriKit Intents where used to build configurable widgets. You can use this to add backwards compatibility.

Information

You could also use SiriKit Intents standalone however it is unclear how long Apple will support this.

Basic setup

Create Intent
Create a new SiriKit Intent File by going to
File

New

SiriKit Intent File
Create a new Intent using the
+
button in the bottom left.
In the Intent set
Category
to
View
and enable
Intent is eligible for widgets
Add a simple parameter to the Intent. FOr our example a String parameter called name

Using Intent in Widget

To use our custom generated Intent in the generated Widget we need to to adjust the automatically generated code to conform to the correct APIs.

Adjust your SimpleEntry to use properties instead of the Intent so we can use both the AppIntent and the SiriIntent.

swift

struct SimpleEntry: TimelineEntry {
    let date: Date
    let configuration: ConfigurationAppIntent
    let name: String
    var punctuation: String? = nil
}

Create an IntentTimelineProvider

swift

struct IntentProvider: IntentTimelineProvider {
    typealias Entry = SimpleEntry

    typealias Intent = GreetingIntentIntent

    func placeholder(in context: Context) -> SimpleEntry {
        SimpleEntry(date: Date(), name: "World")
    }

    func getSnapshot(
        for configuration: GreetingIntentIntent, in context: Context,
        completion: @escaping (SimpleEntry) -> Void
    ) {
        completion(SimpleEntry(date: Date(), name: configuration.Name))
    }

    func getTimeline(
        for configuration: GreetingIntentIntent, in context: Context,
        completion: @escaping (Timeline<SimpleEntry>) -> Void
    ) {
        var entries: [SimpleEntry] = []

        // Generate a timeline consisting of five entries an hour apart, starting from the current date.
        let currentDate = Date()
        for hourOffset in 0..&lt;5 {
        let entryDate = Calendar.current.date(byAdding: .hour, value: hourOffset, to: currentDate)!
        let entry = SimpleEntry(date: entryDate, name: configuration.Name)
        entries.append(entry)
        }

        completion(Timeline(entries: entries, policy: .atEnd))
    }
}

In the Widget definition add code to use the appropriate configuration provider.

swift

var body: some WidgetConfiguration {
    if #available(iOS 17.0, *) {
    AppIntentConfiguration(
        return AppIntentConfiguration(
            kind: kind, intent: ConfigurationAppIntent.self, provider: Provider()
        ) {
            entry in
            ConfigurableWidgetEntryView(entry: entry)
            .containerBackground(.fill.tertiary, for: .widget)
        }
    } else {
        return IntentConfiguration(
            kind: kind,
            intent: GreetingIntentIntent.self,
            provider: IntentProvider()
        ) { entry in
            ConfigurableWidgetEntryView(entry: entry)
        }
    }
}

Getting Data from Flutter to the Configuration

With SiriKit Intents you need to add a new IntentHandler that can handle using Data you send from home_widget.

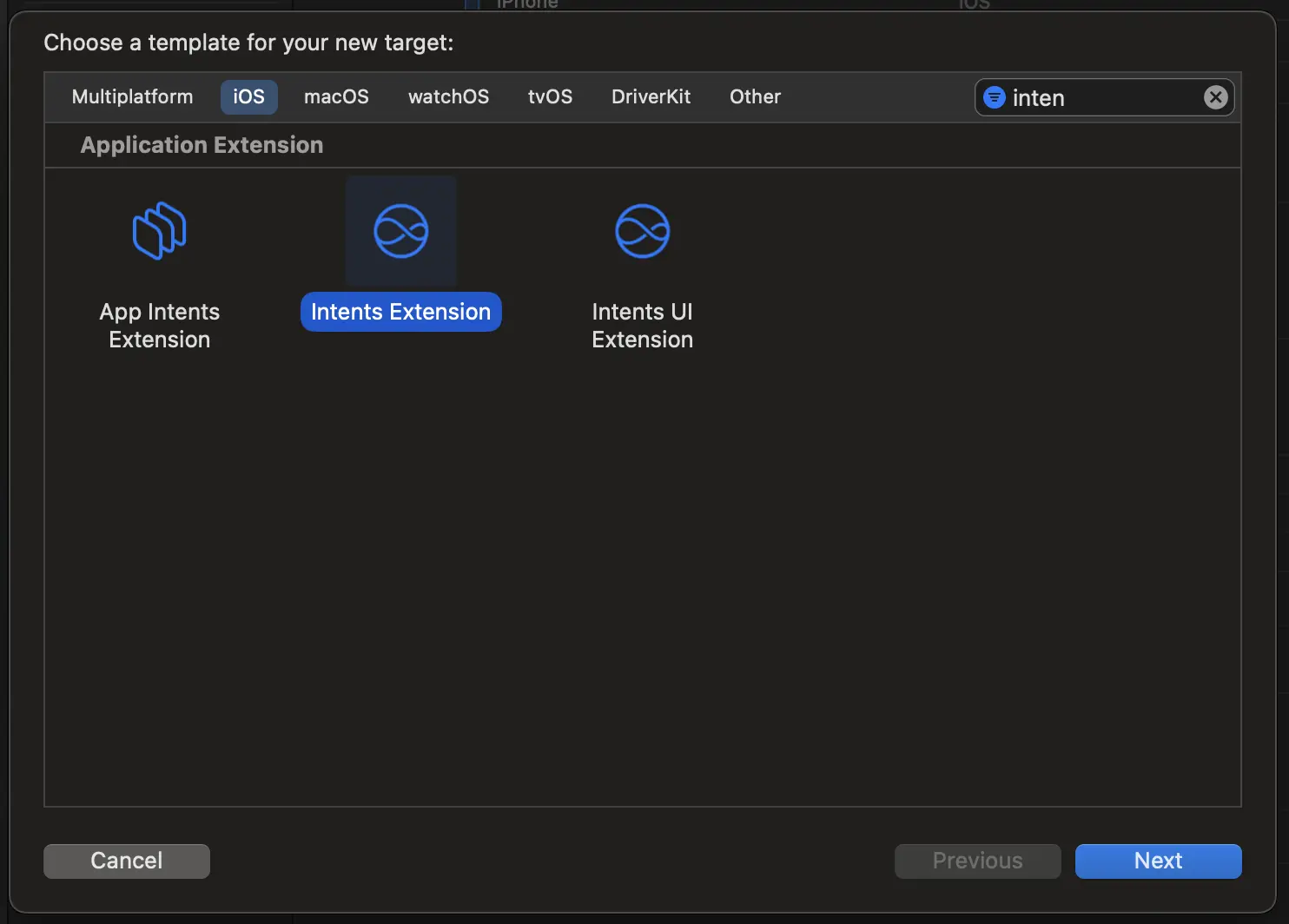

For this add a new

Intents Extension

to your App. Using

File

New

Target

Intents Extension

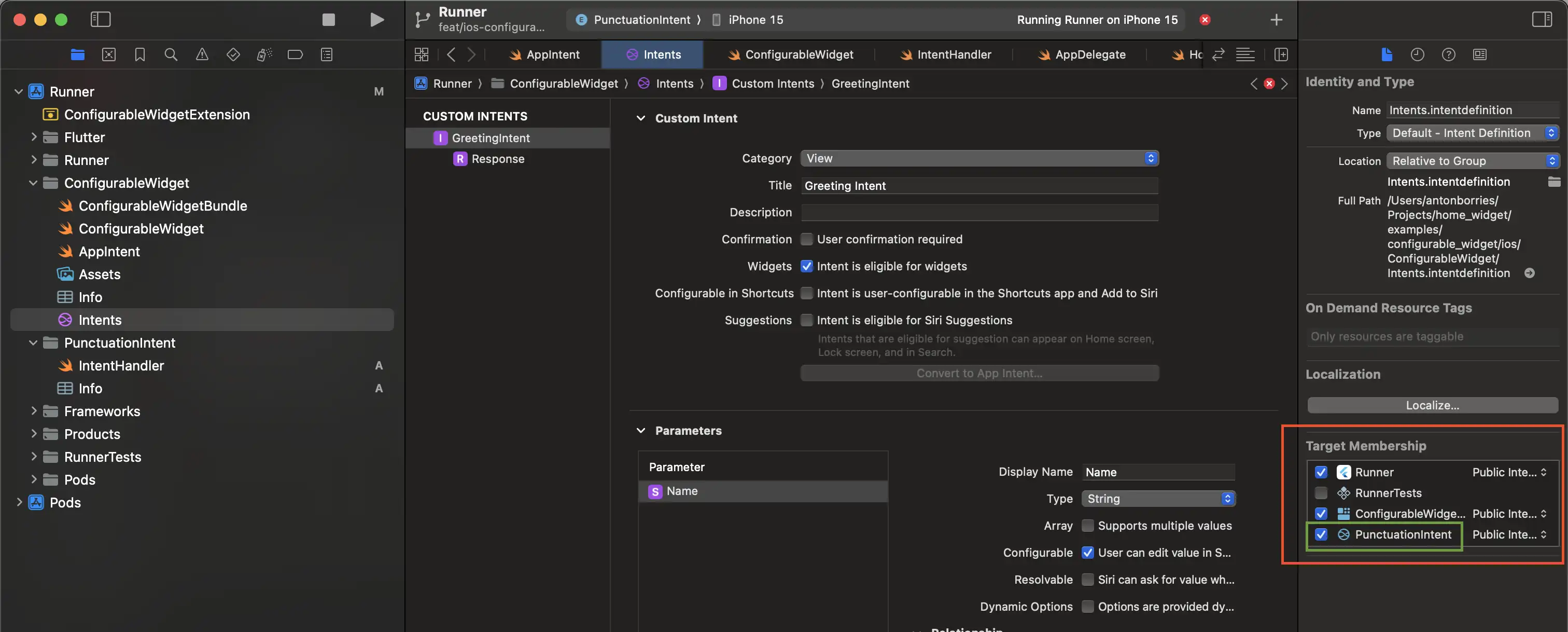

In your SiriKit Intents definition add the newly created Extension as a Target

In the same configurations file add a new Type and configure it to the options you need.

Create a Field that uses this new type. Ensuring to enable

Options are provided dynamically

Implement the IntentHandler to handle the new Intent

swift

import Intents

class IntentHandler: INExtension, GreetingIntentIntentHandling {

func providePunctuationOptionsCollection(for intent: GreetingIntentIntent) async throws -> INObjectCollection<Punctuation> {
    let userDefaults = UserDefaults(suiteName: "YOUR_APP_GROUP")

    do {
        let jsonPunctuations = (userDefaults?.string(forKey: "punctuations") ?? "[\"!\"]").data(using: .utf8)!
        let stringArray = try JSONDecoder().decode([String].self, from: jsonPunctuations)
        let items = stringArray.map { punctuation in
            Punctuation(identifier: punctuation, display: punctuation)
        }
        return INObjectCollection(items: items)

    } catch {
        return INObjectCollection(items: [Punctuation(identifier: "!", display: "!")])
    }
}
}

Seeing Configuration in Flutter
Similar to the WidgetConfigurationIntent you can use HomeWidget.getInstalledWidgets() to get the configuration of the Widget.
dart
final configuration = await HomeWidget.getInstalledWidgets();
this will give you a list of HomeWidgetInfo in there there is a Map<String, dynamic>? configuration.
For our Greeting Example the Configuration would be:
json
{ "Name": "Siri", "Punctuation": { "identifier": "👋", "displayString": "👋" } }

Android

Use a dedicated FlutterActivity for widget configuration and a second Dart entry point (e.g. configureMain) so configuration always runs in a clean isolate and you do not mix “open app” with “configure widget.” The steps below describe that setup.

For a full example, check out the configurable_widget example app.

Information

You can point android:configure at MainActivity and handle everything in main(), but that is easy to get wrong: main() runs once per process, while your activity can be recreated, resumed, or receive new intents when the user opens configuration again. You must detect “launched from widget configuration” in the right lifecycle moments—not only on the first main()—or you can show the wrong UI or miss a configure flow. Prefer the dedicated activity unless you have a strong reason not to.

Create a configuration Activity

Subclass FlutterActivity and override the Dart entry point name so Flutter runs configureMain instead of main:

kotlin

package es.antonborri.configurable_widget

import io.flutter.embedding.android.FlutterActivity

class WidgetConfigurationActivity : FlutterActivity() {
  override fun getDartEntrypointFunctionName(): String = "configureMain"
}

Keep your launcher MainActivity on the default main entry point.

Register the Activity in the widget provider
In your widget’s appwidget-provider XML, set reconfigurable and point android:configure at the fully qualified class name of your configuration activity:
xml
<appwidget-provider xmlns:android="http://schemas.android.com/apk/res/android" ... android:widgetFeatures="reconfigurable" android:configure="com.example.app.WidgetConfigurationActivity" />
This enables the widget’s configuration / “Settings” flow from the system UI.

Declare the Activity in AndroidManifest.xml

Register the configuration activity with an intent filter for android.appwidget.action.APPWIDGET_CONFIGURE (same action as AppWidgetManager.ACTION_APPWIDGET_CONFIGURE). Mirror the Flutter embedding setup you use on MainActivity (LaunchTheme, NormalTheme, configChanges, etc.):

xml

<activity
    android:name=".WidgetConfigurationActivity"
    android:exported="true"
    android:launchMode="singleTop"
    ... >
    <meta-data
        android:name="io.flutter.embedding.android.NormalTheme"
        android:resource="@style/NormalTheme" />
    <intent-filter>
        <action android:name="android.appwidget.action.APPWIDGET_CONFIGURE" />
    </intent-filter>
</activity>

Add `configureMain` and listen for configuration
Define a second entry point with @pragma('vm:entry-point') so tree shaking keeps it. The name must match getDartEntrypointFunctionName():
dart
@pragma('vm:entry-point') Future<void> configureMain() async { WidgetsFlutterBinding.ensureInitialized(); final configuredWidgetId = await HomeWidget.initiallyLaunchedFromHomeWidgetConfigure(); if (configuredWidgetId != null) { return runApp(MaterialApp( home: YourConfigurationScreen(widgetId: configuredWidgetId), )); } return main(); }
Call HomeWidget.initiallyLaunchedFromHomeWidgetConfigure() as early as possible after WidgetsFlutterBinding.ensureInitialized(). If the user opened this activity to configure a widget, the Future resolves to that instance’s widget ID (string); otherwise null (you can fall through to main()).
When a configure launch is detected, the plugin sets the activity result to RESULT_CANCELED until you finish successfully—so canceling or leaving the flow behaves correctly.
Build the configuration UI and persist with HomeWidget
In your configuration screen, use the widget ID to scope stored keys per instance (for example name.$widgetId and punctuation.$widgetId), read/write them with HomeWidget.getWidgetData / HomeWidget.saveWidgetData, and refresh the widget with HomeWidget.updateWidget (pass qualifiedAndroidName for your AppWidgetProvider / receiver class if needed).
Finish configuration
When the user saves (or you are done applying settings), call:
dart
await HomeWidget.finishHomeWidgetConfigure();
This completes the configuration activity with RESULT_OK, returns the EXTRA_APPWIDGET_ID to the system, and closes the activity.

For platform details and UI expectations, see the Android App Widget configuration guide.

Configurable Widgets

Configurable Widgets

iOS

WidgetConfigurationIntent

Create Widget Extension

Adjusting the Configuration Intent

Getting Data from Flutter to the Configuration

App Groups

Create a new App Group

Enable App Groups in XCode

Register App Group in Flutter

Send Data

Use Values from Flutter as Options in Customize Panel

Seeing Configuration in Flutter

Add Runner as a Target of the Widget

Register Configuration in AppDelegate

SiriKit Intents

Basic setup

Create Intent

Using Intent in Widget

Getting Data from Flutter to the Configuration

Seeing Configuration in Flutter

Android

Create a configuration Activity

Register the Activity in the widget provider

Declare the Activity in AndroidManifest.xml

Add `configureMain` and listen for configuration

Build the configuration UI and persist with HomeWidget

Finish configuration

On this page

Add `Runner` as a Target of the Widget
